Resine e tessuti per sistema di rinforzo FRP certificato con CVT

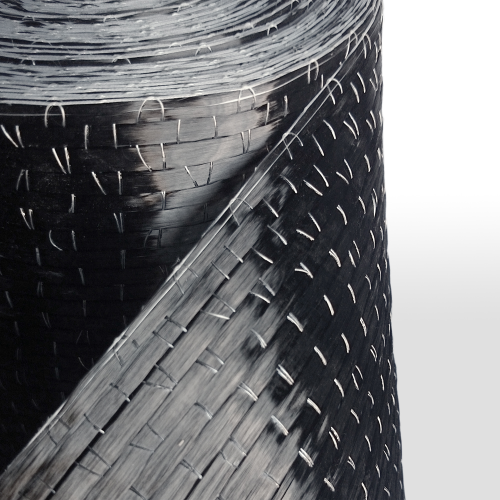

Kimitech CB ST 300

Range of carbon fibre reinforcement fabrics with different weights and textures for structural consolidation

Kimitech CB is a family of carbon fiber reinforcement fabrics available in different weight and texture, specific for structural consolidation. Its advantages are: high mechanical resistance, low thickness and weight, speed and ease of installation, great workability and ductility, ability to orient and size the reinforcement of the structure as needed.

Applications

Kimitech CB fabrics are used for structural consolidations of r.c., steel, wood and masonry elements. They are particularly suitable for plating inflected elements, to reinforce beams and partitions, to confine pillars and, in general, to circle buildings.

Certifications

I tessuti Kimitech CB ST 300 fanno parte di Kimitech CB ST 300 CMP-system in possesso di CVT n° 405.

Application

Please refer to the specifications and technical data sheets of the materials to be used depending on the kind of work to be performed. In case of reinforced concrete structures, the concrete substrate, where we apply the reinforcing system, shall not have a concrete compressive resistance less than 15 N/mm². In case of masonry support, follow instructions mentioned at §5.8.1.1 of Guide Lines CNR DT 200 R1/2013. Once the surface has been prepared and primed with Kimicover FIX, spread Kimitech EP-TX epoxy adhesive. When fresh, roll out the fabric and, using a special metal roller, exert a slight pressure on it; this favour a good adhesion of the fabric and will avoid dangerous formations of air bubbles. Apply by brush Kimitech EP-IN or Kimitech CMP epoxy impregnant on the fabric.
